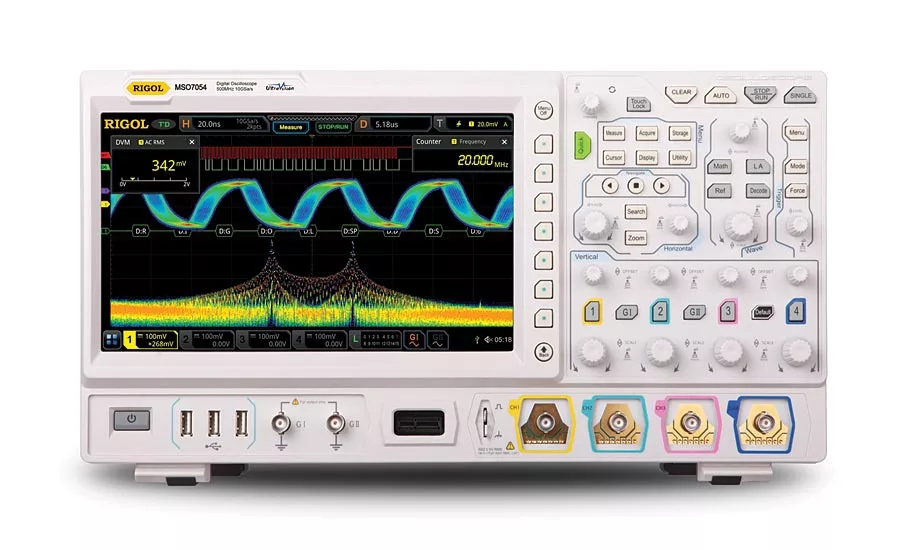

RIGOL 7000 Series Digital Oscilloscope
RIGOL 7000 Series Digital Oscilloscope.
RIGOL Technologies announces a significant addition to its oscilloscope portfolio with the introduction of the New 7000 Series Digital Oscilloscope.
The 7000 Series delivers unmatched price/performance capability in a mid-range oscilloscope. With 10GSa/sec Sample rate and up to 500M Record Length the 7000 Series can deliver 20X Oversampling on a 500MHz signal providing unmatched signal resolution while still capturing a full 50ms; significantly longer than available in competitive products.
The core of the 7000 Series Oscilloscope is RIGOL’s new UltraVision II architecture and its Phoenix chip-set. Two custom ASICs provide analog front end and signal processing performance. These chips are surrounded by a high performance hardware design including Xilinx Zync-7000 SoC, Dual Core Arm-9 Processors, Linux +Qt Operating System, High Speed DDR System Memory and QDRII Display memory. This architecture enables a high waveform capture rate of 600,000wfms/sec, color graded intensity display, and outstanding time-base accuracy and jitter performance.
The 7000 Series comes with a next generation user interface giving the customer five unique ways to interact with their instrument. A vivid 10.1” (1024x600) display supports a responsive and intuitive touch navigation. Customers requiring a larger display can take advantage of the native HDMI support to drive large displays and control the instrument with a mouse. The DS7000 also supports a touch enabled browser capability so you can control the instrument on your network via a tablet or smartphone. Traditional knobs, buttons, and soft keys are still available for those who choose to work with a traditional UI. Lastly, the UltraScope remote control and display software will let users interface with the unit directly from their PC.
Solving customer’s challenges requires analysis capabilities and the 7000 Series provides a comprehensive set of advanced analysis tools. Six-in-One capability provides multiple instrument types. Oscilloscope, Logic Analyzer, Protocol Analyzer, Waveform Generator, Digital Voltmeter, and Counter/Totalizer are all integrated into the 7000 Series. Beyond that tools like Zone Triggering, 41 Precision Measurements, Multiple High Resolution Color FFTs, as well as standard Histogram and Pass/Fail Analysis make the 7000 Series a powerful mid-range debug solution.
RIGOL Technologies
