R&R Fixtures created the QuickLoad™ corner (QLC) to locate and hold fixture base plates on vision systems. It has now developed a similar product for use on CMMs. The QuickLoad rail (QLR) is the latest product released by R&R Fixtures, continuing its quest to provide innovative fixturing products.

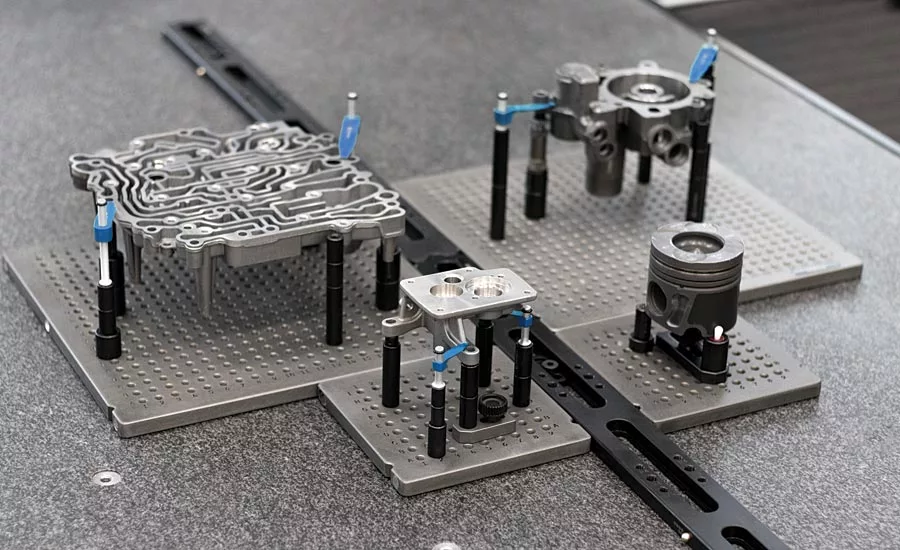

The QuickLoad rail (QLR) system utilizes the company’s hard-coat anodized, alpha-numerically labelled aluminum base plates in a variety of thread sizes (M4, M6, M8, ¼-20). Base plates locate to the QLR on either side using quick release magnets and location pins. Used with R&R Fixtures’ extensive selection of labeled modular components, the alpha-numeric plates enable the user to set parts up the same way every time. The product is quick, easy and repeatable, allowing the user to set up parts for inspection on multiple plates, and load them to the rail efficiently to maximize throughput.
