Materials Testing Standardization in Metal Additive Manufacturing

Even with the use of existing standards, several notable gaps remain.

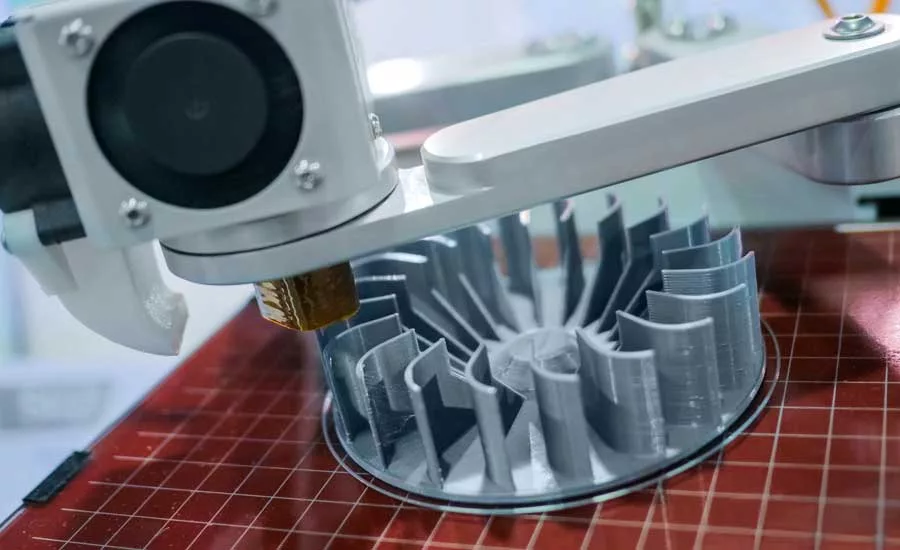

additive manufacturing
October 1, 2019
Dave van der Wiel
KEYWORDS 3D printing/additive manufacturing / ANSI / ASTM / ISO standards / materials testing / metal additive manufacturing solutions / nondestructive testing
Reprints
No Comments

Materials testing in metal additive manufacturing (AM) involves characterization of raw materials and evaluation of finished parts. The raw materials used in metal AM processes include powders, filaments and sheets. Powders are utilized in many AM processes, most notably powder bed fusion (PBF), while filaments are used in extrusion and certain deposition processes, with sheets used for lamination processes.

The rapid pace of adoption of AM processes by industry has created a serious gap in standardization of materials, processes, test methods and design. The largest unified AM standardization effort involves a joint effort between the AM committees of ASTM F42 and ISO TC 261. Joint ISO/ASTM standards will be published as European standards (EN) through collaboration with the European Committee for Standardization (CEN).

Under a joint effort between ANSI and America Makes, the Additive Manufacturing Standardization Collaborative (AMSC) published a Standardization Roadmap for AM in 2018. This publication includes gap analyses for materials testing of raw materials and finished parts, along with then-current efforts aimed at mitigating those gaps. Critical to ASTM-ISO AM efforts are several data-producing R&D projects within the ASTM AM Center of Excellence (COE) as well as at supporting organizations such as NIST and the Additive Manufacturing Consortium (AMC).

Raw Materials

Analyses of filament and sheet type metal feedstocks is already standardized outside the AM space, and so these raw materials typically do not present unique challenges to standardized testing. However, because of very high surface area to volume ratios, powder materials often display unique properties that depart from those of bulk forms. These properties, in turn, affect intraparticle forces with bulk powders—leading to effects such as enhanced moisture uptake, electrostatic effects, variable flow behavior and consolidation effects.

Conventional powder metallurgy (PM) standards have initially been adopted for use in AM, but they are increasingly seen as insufficient or inappropriate in many instances. ASTM Guide F3049 lists those existing standards that may be appropriate for AM, updates to which are part of ASTM work item WK67454. ASTM WK62190, nearing final review, expands on F3049 but is specific to PBF.

The AMC is sponsoring a project to evaluate and compare powder characterization techniques, while ASTM is sponsoring a COE project to develop quality assessment guidelines for powder feedstocks (WK66030). Data generated through the ASTM AM powder proficiency test program can be utilized to advance both projects.

Materials Testing

Examples of Materials Testing Standardization Activities Addressing Identified Gaps

Powder Sampling

One embodiment of the unique characteristics of powders is that bulk lots may contain significant heterogeneities imparted during manufacturing and/or subsequent handling operations (e.g. self-segregation). Testing data may display high variability if powders are not blended and sampled correctly. ASTM B215, ISO 3954 and MPIF 01 provide existing PM standards for powder sampling, which may be sufficient for most virgin powders. However, sampling of recycled powders and blends remains an identified gap.

Composition

Chemical analysis techniques for metal AM raw materials are largely the same as used in conventional manufacturing. Existing ASTM E01 and MPIF test methods have proven sufficient for ferrous, nickel, titanium, aluminum and other alloys. These methods typically employ XRF, ICP, AA, Spark OES and IGF/Combustion techniques. SEM-EDS analysis can be conducted on particle surfaces or cross-sections, although the size of the population sampled is very limited.

Particle Size Distribution

Existing ASTM B09 PM, ISO and MPIF 05 particle size methods for metals include sieve, laser scattering and air permeability techniques, while ISO provides for material-nonspecific scattering/diffraction methods and image analysis methods (ISO 13322-1 and -2).

Particle Morphology

Standardized particle morphology terminologies for powders are defined by ISO 9276-6 and ASTM F1877. For AM applications, ASTM F3049 mentions the use of light-scattering techniques and image analysis, while WK67454 indicates SEM as the preferred technique. These techniques are disadvantageous considering they utilize 2D images and/or geometric equivalences for representing complex, 3D morphologies. SEM is particularly limited by small sample representation.

However, ASTM B922 provides for analysis of metal powder specific surface area by gas adsorption (nitrogen or krypton), while ISO 9277 applies to general materials. Specific surface area measurements have the advantage of being able to probe bulk quantities of powder, represent all three dimensions of particles and provide quantitative measurement data. Referred to as “BET surface area,” this parameter has been quantitatively linked to many different morphological features. For example, the dramatically different particle morphologies resulting from water-, air- and inert gas-atomized processes are easily distinguished by BET surface area measurements.

Powder Bulk Moisture

As previously described, the nature of powder materials often results in disproportionate uptake of ambient moisture compared to a given material in other forms. This is especially true for particles with surface roughness, defects or other morphologies that produce additional surface area. In metal powders, even very small amounts of moisture (<0.5%wt) can affect oxidation, spreading and densification. Researchers at McGill University have demonstrated the significant impact of ambient lab humidity on powder flow analysis.

While conventional oven-based methods exist for determining moisture content in powders, the techniques are time-consuming. Titrations such as the Karl Fisher method are water-specific and very accurate, but are complex and laborious. Newer generation halogen-IR type moisture analyzers and/or those based on relative humidity in gas flow may prove useful.

Nonetheless, this topic is not being individually addressed by any current programs, and so remains a significant gap, requiring coordination of one or more interlaboratory studies.

AM Standardization

Some of the Entities in the U.S. and E.U. Contributing to AM Standardization

Powder Bulk & Skeletal Density

The density of powder beds in various states provides information that can be used to optimize densification processes. ASTM, ISO and MPIF provide several methods for measuring the loose, or apparent, bulk density of metal powders, as well as “tapped” density of a consolidated bed. ASTM B923 further provides for the measurement of skeletal density of metal powders using gas pycnometry.

Powder Flowability & Spreadability

Of particular importance recently is the characterization of powder flow. Conventional PM methods utilizing funnels and density ratios have proven insufficient for many powder-based AM processes. Powder flowability measurements can be categorized according (1) the state of the powder during testing and (2) the level of stress applied to the powder during the test. The convention funnel methods are considered low stress, static tests. Recent ASTM AM proficiency tests have shown enormous variability in Hall flow rate, ranging from 25 sec to 45 sec for one material. Shear cell and impeller-type techniques operate under high stress and quasi-static conditions. Avalanche (or drum) type rheometers are low-stress, dynamic methods that may most accurately represent the state of powders during spreading and other AM powder processes.

ASTM WK55610 is working to define new test methods for powder flow in AM. Toward this end, the ASTM B09 committee on powder metallurgy recently hosted a workshop on powder flow characterization, where a round robin study was conducted between three powder flow instruments on six blind powder samples. In this study, the avalanche-type rheometer methods proved most adept at distinguishing between the six samples.

The NIST MSAM program is sponsoring projects examining the flowability, spreadability and compaction of metal AM powders, including the design and testing of a custom powder spreading apparatus.

Summary

While several existing PM standards are being used for AM powder characterization, it is becoming increasingly clear that this stopgap approach is often insufficient or inapplicable for AM powder applications. Even with the use of existing standards, several notable gaps remain and the pace of progress in closing these gaps has been slow. Open collaboration between businesses, universities and standard organizations is critical to the advancement of AM, particularly in regulated industries.

subscribe to Quality Magazine

Dave van der Wiel is the analytical operations manager at NSL Analytical Services. For more information, call (800) 497-6752, email dvanderwiel@nslanalytical.com or visit NSLAnalytical.com.
