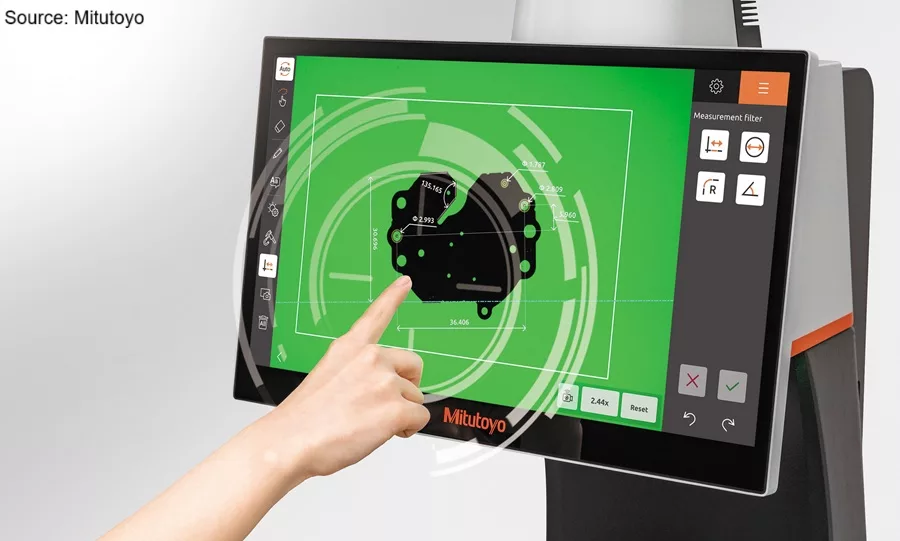

Mitutoyo America Corporation introduces the QM-Fit Smart Vision System. The QM-Fit represents a step forward in optical metrology. The system features a wide field of view that can intelligently recognize part geometry, allowing measurements to be initiated automatically by extracting shapes displayed on the 15.6-inch intuitive color touchscreen. By combining streamlined operation with advanced automation, the QM-Fit delivers precision measurements with simplicity.

The QM-Fit is an all-in-one measurement system which allows you to view more of your parts under the high-resolution 20-megapixel color camera, combined with a telecentric lens that provides accurate imaging. The QM-Fit has an integrated computer and touch screen that delivers fast, effortless results. Automatic Element Detection instantly identifies multiple features, by automatically recognizing a workpiece, determining its alignment, and performing measurement routines.

Enhanced accuracy backed by NIST traceability:

•    Results can be displayed in mm, µm, inch and µinch

•    Measurement accuracy ± 0.000394", ±10 µm

•    Repeatability 2σ ≤ 4 μm

•    Accuracy guaranteed temperature range: 20±1 °C

Image quality and lighting captures every detail instantly:

•    20-megapixel Color CMOS camera

•    Stage and 8 Quadrant Ring Illumination

•    Operator selectable digital magnifications of 1, 2, 5, 10, 20, 50 and 100x

•    Measurable range: 4.5" x 3.0" x 1.4”, 115 x 75 x 36 mm

Mitutoyo America Corporation
www.mitutoyo.com
